AND TRACERS (FORMERLY DIGICAT)

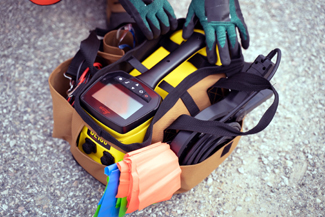

Leica DT100 system is integrated with the DE100, a 10-watt signal transmitter capable of delivering up to 1A of maximum current, enhancing signal transmission along utilities. It features dual output ports, allowing for the simultaneous connection of two accessories. The preferred accessory can be selected with the press of a single button.
Furthermore, thanks to the information shown on the embedded display, it is possible to immediately evaluate whether the signal flows correctly within the utility..
Paired with the DE100 Transmitter, it addresses key market demands, including high accuracy, ease of use, and real-time feedback. Its intuitive interface allows operators to quickly perform complex location tasks with precision, making it accessible to both experienced and new users alike.
Leica DT100 system is integrated with the DE100, a 10-watt signal transmitter capable of delivering up to 1A of maximum current, enhancing signal transmission along utilities. It features dual output ports, allowing for the simultaneous connection of two accessories. The preferred accessory can be selected with the press of a single button.
Furthermore, thanks to the information shown on the embedded display, it is possible to immediately evaluate whether the signal flows correctly within the utility.
The new approach to displaying peak and null signals is not only easy to understand but also guarantees reliable and accurate identification of the user being searched for.
Thanks to the frequency analysis tool, the user is guided simply and intuitively in choosing the best frequency for that specific environment.The embedded display on the Leica DE100 Signal Transmitter is able to show the current, voltage and impedance values of the circuit created with the line to which the system has been connected. This is helpful to identify the quality of the located signal.
Combined with the signal frequency analyser, it allows the user to have an accurate view of the environment and the quality of the signal delivered. In addition, the transmitter is able to alert the presence of hazardous voltages. The Leica DE100 will check for the presence of high voltage on the output ports, promptly alerting the user if a voltage potentially lethal to the user is measured.

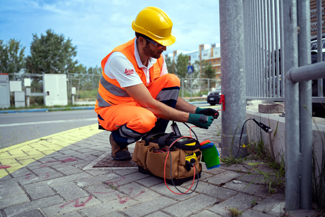

The new Leica DT100 and DE100 system is equipped with all the accessories necessary to carry out fieldwork. From the connections leads with removable head, to the availability of 2 different earth poles, passing through a clamp that can be used both as a transmitter clamp and as a receiver clamp, there is everything you need to be able to carry out your construction site activities without worrying about carrying other instruments in the field.
Leica DT100 and FLX100 Plus...The Ultimate Solution for Underground Utility Mapping Effortless Positioning: The DT100 does not require perfect alignment, ensuring accurate depth and position readings even when slightly misaligned. Seamless Integration: Works with the Zeno Mobile One app and FLX100 plus GNSS antenna for enhanced data collection and GIS mapping. Real-Time Data Sharing: Direct connectivity with Esri ArcGIS for instant utility mapping updates and collaboration.
- Package with DA220 1 Watt signal transmitter, bag, and extension cable
- Catalog number 6014155
- Handheld multi-frequency underground service locator
- 33 and 8 kHz transmitter modes
- Depth range for line 1 ft to 10 ft; Depth range for sonde 1 ft to 10 ft
- Used for detecting the position of buried cables and pipes before excavation
- No need to manually adjust sensitivity of locator
- Reduces human error
- Enables easier and more efficient cable and pipe locating
- IP54 rating - protection from dust and water
The Leica DA signal transmitters apply a signal onto underground cables or pipes that may not carry a detectable signal. The Leica DD cable locators can then be used to locate the signal from the Leica signal transmitter. The DA signal transmitters are compact, robust and easy-to-use. The have been designed in conjunction with the DD cable locators to easily and accurately avoid, trace or locate buried cables and pipes.The Leica DD100 Series cable locators feature advanced automatic controls making the DD100 Series easy-to-use, requiring minimal user experience. Avoiding underground cables and pipes is a major concern on construction sites. Therefore, detecting the position of buried cables and pipes before excavation work can help prevent operator injury, asset damage risks and any subsequent costs. Use the DD100 Series cable locators in conjunction with a DA220 or DA230 signal transmitter and/or the Digisystem accessories to achieve improved accuracy and application scope.
Unmatched Ease Of Use
With Automatic Pinpointing there is no need for you to manually adjust the sensitivity of your Digicat cable locator ensuring you’re using the optimum sensitivity for the environment you are detecting the underground utilities in. Reducing the likelihood of human error and enabling easier and more efficient cable and pipe locating. Ultimately saving you time and money.
- Power: 50 / 60 Hz mains electrical and harmonics
- Radio: 15kHz to 60kHz
- Auto: Power, Radio, 33kHz
- Transmitter Modes: 131.072 (131) kHz | 83.078 (83) kHz | 32.768 (33) kHz | 8.192 (8) kHz | 512 Hz | 640 Hz
- Depth Range: Line 0.1m to 7m | 4 inches to 23 feet | Sonde 0.1 to 10m | Sonde 4 inches to 32.8 feet
- Depth Accuracy*: 5%
- Bluetooth: Class 2 BLE dual mode module - Bluetooth Classic 2.1 | Bluetooth 4.0 (LE)
- GPS**:
Chipset (1): u-blox®GPS
Receiver Type: GPS L1C/A, SBAS L1C/A, QZSS L1C/A, GLONASS L1OF, BeiDou B1
Accuracy (2): Horizontal Position 2.5 m Autonomous, 2.0 m SBAS,CEP
- Start time: Cold 45 s typical, Aided 7 s typical, Hot 1 s typical
- Memory Capacity: 8 GB internal memory
- Environmental Standard IP65
- Operating Temperature -20 °C to +50 °C | -4 °F to +122°F
- Battery 4 X LR20 Alkaline Battery - Li-Ion as Optional
- Battery operating time *** 10 h
The Leica DD300 Connect Utility Locator features an LCD color screen with video tutorials for a simple step-by-step survey. The DD300 Connect offers a wide range of standard frequencies, including an 83kHz high-frequency that bridges the gap from 33kHz to 131kHz. It is equipped with an innovative digital trim, providing accurate detection even in multi-target environments.
Ease of Use:
Smart & easy device for real-time, accurate, and reliable detection of underground infrastructures.
Improves safety by mitigating risks on construction sites.
Customization:
Adapts to various surveyor needs with the Leica DD300 and Leica DA300 transmitter.
Provides unprecedented customization in the avoidance market.
Reliability:
Innovative digital trim for accurate detection in multi-target environments.
Supports a wide range of transmission frequencies.
Unique in the market for supporting the 83kHz frequency, aiding in complex underground structure detection.
Designed for improved serviceability with self-calibration functionality for easy and autonomous testing and re-calibration.
Digital Trim:
Assists operators in pinpointing the desired target even in complex scenarios.
The new Leica DX Shield software provides organisations with a single-source solution protecting operators and utilities from harm. Auto-sync and access your collected data using your mobile phone. The DX Field Shield app provides operators with a remote transfer tool, linking data from the site to DX Office Shield or DX Manager Shield hosted service. DX Manager Shield provides organisations with a centralised hosted platform for multiple users, across multiple sites. DX Office Shield provides organisations with a scalable local solution on a single-source platform. The success of your business rests on two valuable investments; Leica DD300 CONNECT utility locator and Leica DX Shield Software. Accurately trace utility lines using simple workflows, increasing capability to analyse your assets performance in less time. DD300 CONNECT encompasses in one device everything basic to expert users need
- DX FIELD SHIELD
- Fast and easy transfer of locator data and site documentation.
Connects field activities to DX Manager Shield
Connects field activities to DX Office Shield
Available for Smart phones and tablets
- DX OFFICE SHIELD
Provides product configuration, maintenance and usage analysis. Connects to CalMaster and link to the web for web calibration verification
Update product firmware and settings
Processes & reports on the locator usage information
Windows PC system
- DX MANAGER SHIELD
Visualise and report on locator use and site documentation in near real time.
Centralised, accessible information
Processes & reports on the locator usage information
Holds all site documentation e.g. health & safety forms
Keeps all site photos logged in the project folder
Standard, Pro or Expert levels, there’s a version that’s right for your business
LEICA DT100 BROCHURE
LEICA DD120 BROCHURE
LEICA DD300 BROCHURE
