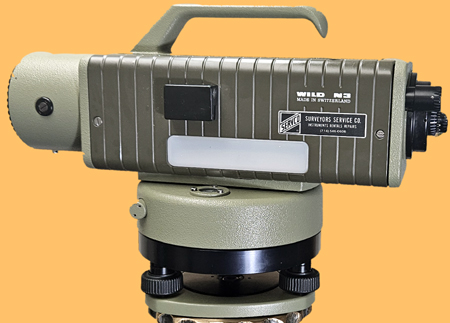

- Made in Switzerland with "Old World" craftsmanship!

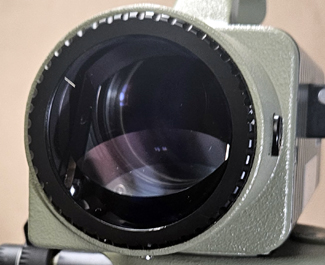

- Erect image telescope with panfocal optics; minium focus of less than 1-foot, magnification increases with distance up to 45X
- Wedge-type reticle for precise targeting

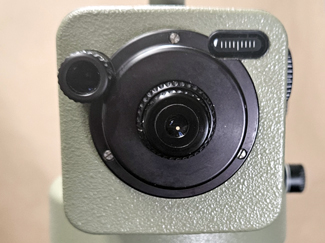

- Convenient dual-speed focus
- Split-bubble type leveling vial for hair splitting accuracy

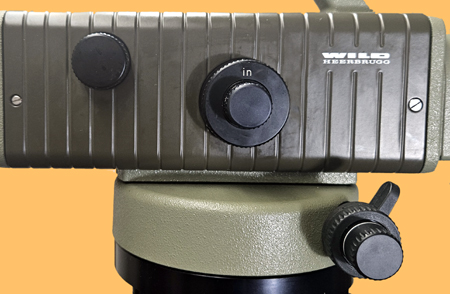

- Integral parallel plate micrometer (inches) for precision reading directly to 0.001 inch, with estimation to 0.0005 inch.
- For precise optical tooling (industrial) applications
- A current calibration certificate will be provided!

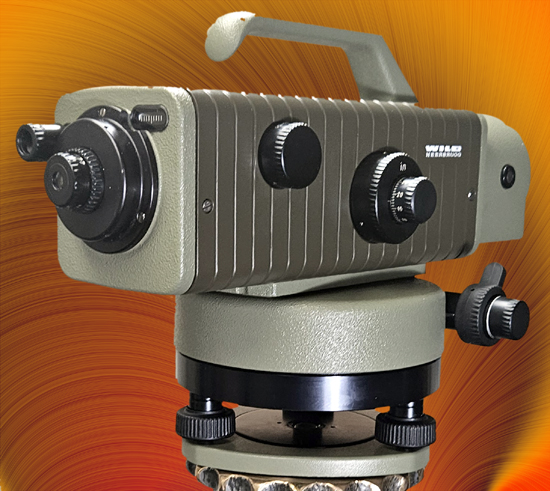

The classical use of the instrument is for geodesy, particularly the measurement of national networks. For the highest accuracy requirements in engineering and for the control of structures , the N3 is widely employed.
The N3 is a spirit-level instrument, for very good reasons. The inherent qualities of a well-designed precision spirit-level produce a basic stability that an automatic level can hardly match .
Although a few first-order automatic levels, such as the WILD NA2 with parallel-plate micrometer, are capable of leveling accuracy approaching that of the N3 , there are circumstances and fields of application where the spirit-level instrument has important advantages. When running lines of first-order levels in windy conditions, the N3 will give reliable results. The reason is the tubular level, the stability of the instrument. Industrial users, laboratories and research establishments will find that the N3 is relatively unaffected by vibrations and that strong permanent magnetic fields have no influence at all. The N3 can be used for measuring small inclinations for river crossings in geodesy and for setting and controlling inclinations in industry.
|
TECHNICAL DATA
|
WILD N3 NEW STYLE |
| Standard deviation for 1 mile/1km
double run leveling Telescope with pan-focal optics Clear objective aperture |
0.0008 ft (±0,2 mm ) Pan-focal Optic, erect image 2.05 in (52 mm) 11.7 in (297 mm) |
| Shortest focusing distance: Standing axis to target Cover glass to target |
17.7 in 45 cm 11.0 in 28 cm |
| Tubular level, sensitivity per 2 mm Setting accuracy (split bubble) Circular level, sensitivity per 2 mm |
10"/2 mm ±0,25" 2' /2 mm |
| Plan parallel micrometer | Range Interval Estimation (10mm) (0,1 mm) (0,01 mm) 0,5 in 0,001 in 0,0005 in |
| Tilting screw with graduation Range = 8 revs = 400 intervals (400:100000) 1 revolution = SO intervals (SO :100 000) 1 interval on drum (1:100000) |
8 revolutions 0.400 in / 100 in 0. 0400 ft / 10 ft 0.050 in / 100 in 0.0050 ft / 10 ft 0.001 in / 100 in 0.0001 ft /10 ft |
| ACCURACY OF MEASUREMENT | 0,5" ±0,4% of measured inclination |
| Parallel-plate micrometer with glass scale |
Range Interval Estimation 0.5in 0.001in 0.0005in (10mm 0.1mm 0.01mm) |
| ENVIRONMENTAL RANGE | -22° to +140°F / -20°c ... +50°C |
| WEIGHT
N3 with accessories in container Tripod GST40, with rigid legs Tripod GST20-9, with telescopic legs |
5,1 kg 3,4 kg 6,0 kg 6,5 kg |
| OPTIONAL ACCESSORIES
(NOT INCLUDED) Exchangeable eyepiece FOK53 for higher magnification Eyepiece lamp (converts the N3 into a collimator) Laser Eyepiece DL2 Auto-collimation eyepiece GOA2 |
