LEICA FLEXLINE TS02/06/09 TOTAL STATIONS .........NEWLY ENHANCED!!!!
For basic to advanced users with the need for flexibility and performance! To ensure that you stay one-step-ahead, Leica GeoSystems has developed a new generation of total stations using the latest technology. For the first time, hardware and software options can be simply selected so the the FlexLine total station exactly meets your requirements. As required by Leica, all prices displayed are list prices, call (562-426-1306) or write for your discount price!
  • 30x telescope with famous Leica optics
  • 1" minimum angle display
  • Angle accuracies of 1" to 7"
  • 3500m range to single prism
  • Reflectorless versions available with range up to 1000m (R1000 models)
  • Large, high resolution screen
  • Keyboard options include alpha-numeric; single or dual (color touchscreen w/TS09)
  • Intuitive program structure with numerous on-board software options
  • Simple menu-driven operations
  • 24,000 points of on-board memory
  • Flexible data exchange--create your own format with provided on-board software. RS232 interface standard. Bluetooth and USB options available
  • Quadrupal-axis angle compensation
  • Laser plummet
  • Convenient NiMH camcorder type battery provides up to 20 hours of continuous operation
  • Splash and dust proof
Leica FlexLine TS02 - Ideal Today, perfect Tomorrow

The ideal Total Station for standard measurement tasks. Designed especially for mid-to-low accuracy applications. It comes complete with a standard set of application software that guides you through your daily work. For more convenience add Bluetooth® wireless technology to connect any data collector and add the software which best suits your tasks and requirements.

  • State-of-the-art simplicity with the standard-keyboard and the high resolution display. Low number of operating elements, whose functions are immediately apparent. At-a-glance viewing on the largest high-resolution display in its class
  • Optimally suited to new users and all those on the construction site who do not use the instrument daily
  • Best-in-class Electronic Distance Measurement (EDM). With PinPoint EDM, FlexLine plus delivers the optimal balance of range, accuracy, reliability, beam visibility, laser dot size and measurement time. 1.5 mm + 2 ppm to prism, 2 mm + 2 ppm to any surface. Extremely fast (1 second); 400 m range without a prism
  • Coaxial laser pointer and measurement beam
  • Work intuitively with the new Leica FlexField plus onboard software. Low learning curve due to guided workflows
  • Easy to understand graphics and icons; Icons to quickly verify instrument status
  • Faster operation due to graphics which make the interpretation of measurement values or text no longer necessary
  • Theft protection by Leica Geosystems – mySecurity. My Security gives you total peace of mind; if your instrument is ever stolen, a locking mechanism is available to ensure that the device is disabled and can no longer be used

Leica FlexLine TS06Plus -Flexibility that counts

For complete flexibility a Total Station that is ready for any challenge. Designed for mid- accuracy applications. As standard, an alpha-numerical keyboard and a complete set of application software is included. For additional flexibility, a wide range of options ensures that you can always count on your TS06 Total Station.

  • State-of-the-art simplicity with the standard-keyboard and the high resolution display. Low number of operating elements, whose functions are immediately apparent. At-a-glance viewing on the largest high-resolution display in its class
  • Optimally suited to new users and all those on the construction site who do not use the instrument daily
  • Best-in-class Electronic Distance Measurement (EDM). With PinPoint EDM, FlexLine plus delivers the optimal balance of range, accuracy, reliability, beam visibility, laser dot size and measurement time. 1.5 mm + 2 ppm to prism, 2 mm + 2 ppm to any surface. Extremely fast (1 second); up to 400 m range without a prism
  • Coaxial laser pointer and measurement beam
  • Work intuitively with the new Leica FlexField plus onboard software. Low learning curve due to guided workflows
  • Easy to understand graphics and icons; Icons to quickly verify instrument status
  • Faster operation due to graphics which make the interpretation of measurement values or text no longer necessary
  • Theft protection by Leica Geosystems – mySecurity. My Security gives you total peace of mind; if your instrument is ever stolen, a locking mechanism is available to ensure that the device is disabled and can no longer be used

Leica FlexLine TS09Plus - Performance guaranteed

A true performance orientated Total Station that continually delivers regardless how demanding the task may be. The Leica FlexLine TS09plus Manual Total Station is ideal for mid- to high-accuracy applications. The brilliant color display with touch operation, built-in Bluetooth, USB host and device board offer the highest performance and ease of use.

  • State-of-the-art simplicity with the standard-keyboard and the high resolution display. Low number of operating elements, whose functions are immediately apparent. At-a-glance viewing on the largest high-resolution display in its class
  • Optimally suited to new users and all those on the construction site who do not use the instrument daily
  • Best-in-class Electronic Distance Measurement (EDM). With PinPoint EDM, FlexLine plus delivers the optimal balance of range, accuracy, reliability, beam visibility, laser dot size and measurement time. 1.5 mm + 2 ppm to prism, 2 mm + 2 ppm to any surface. Extremely fast (1 second); up to 400 m range without a prism
  • Coaxial laser pointer and measurement beam
  • Laser plummet standard with all models.
  • Work intuitively with the new Leica FlexField plus onboard software. Low learning curve due to guided workflows
  • Easy to understand graphics and icons; Icons to quickly verify instrument status
  • Faster operation due to graphics which make the interpretation of measurement values or text no longer necessary
  • Flexible Data Exchange--USB Stick for fast and easy transfer of data (GSI, DXF, ASCII, LandXML, CSV, user-defined). Built-in wireless Bluetooth for cable-free connection to any data logger, e.g. the field controller Leica Viva CS10 or CS15
  • Theft protection by Leica Geosystems – mySecurity. My Security gives you total peace of mind; if your instrument is ever stolen, a locking mechanism is available to ensure that the device is disabled and can no longer be used

Model Comparison: Configurations & Options of Manual Total Stations
TS02 TS06 PLUS TS09 PLUS
1" angular accuracy - O O
Enhanced measurement accuracy to prism 1.5 mm + 2 ppm 1.5 mm + 2 ppm 1.5 mm + 2 ppm
Display with graphics and graphics illumination Black and white high resolution Black and white high resolution Q-VGA color and touch
Full alpha-numeric keyboard with function keys - X X
Second keyboard O O O
Keyboard illumination - - X
Electronic light guide - O X
USB type A and mini B - X X
Bluetooth wireless - X X
SD Card - - -
On board software package Flexfield Plus Standard Flexfield Plus Advanced Flexfield Plus Full
Reflectorless measurement range 400M option 500M included; 1000M option 500M included; 1000M option
LEGEND: X Included; O Option; - Not available
SUGGESTED PACKAGES
TS02 Basic Total Station Packages: Non-relflectorless, no Bluetooth, 7" package has single display, all others dual display as shown below.

TS02 total station, simple numeric standard keyboard with black&white display, RS-232 interface,laser plummet,Quick Guide and container with protective cover, lens hood and cleaning cloth.

765308 TS02: GTS24, 2nd simple numeric keyboard, b&w display, face II

748888 GDF111-1 BASIC tribrach, without optical plummet, pale green.

733270 GEB221, Lithium-Ion battery, 7.4V/4.4Ah, rechargeable. To be used with FlexLine (plus)/TS11/TS12/TS15.

734752 GKL211, Charger BASIC, for Li-Ion batteries GEB221 and GEB211, car adapter cable and net adapter included.

778063 FlexOffice Standard Software, basic functionality for FlexLine instruments. (Node-Locked License)

6003861 TS02 basic package, 7"..........................................................................................................................................list $6,390.00

6003862 TS02 basic package, 5"...........................................................................................................................................list $7,090.00

6003863 TS02 basic packgae, 3"..........................................................................................................................................list $8,290.00
TS02 Basic Total Station Packages: as above but with Bluetooth (GSD04 communication side cover added); 7" single display, all others dual display.

6003864 TS02 basic package, 7", with Bluetooth..................................................................................................................list $6,740.00

6003865 TS02 basic package, 5", with Bluetooth..................................................................................................................list $7,440.00

6003866 TS02 basic package, 3", with Bluetooth..................................................................................................................list $8,640.00
TS02 R400 (reflectorless) packages: no Bluetooth, 7" models single display; all others dual display.

6003867 TS02 package, 7", with R400 (400M) reflectorless..................................................................................................list $7,390.00

6003868 TS02 package, 5", with R400 (400M) reflectorless..................................................................................................list $8,090.00

6003869 TS02 package, 3", with R400 (400M) reflectorless..................................................................................................list $9,290.00
TS02 R400 (reflectorless) packages, with Bluetooth: (GSD04 communication sidecover added), 7" single display, all others dual display

6003880 TS02 package, 7", with R400 reflectorless (400M), and Bluetooth..........................................................................list $7,740.00

6003881 TS02 package, 5", with R400 reflectorless (400M), and Bluetooth..........................................................................list $8,440.00

6003882 TS02 package, 3", with R400 reflectorless (400M), and Bluetooth..........................................................................list $9,640.00
TS06 Flexline Plus total station packages: Bluetooth (communication sidecover) is standard, 7" second models have single alpha-numeric keypad, all others have dual alpha-numeric keypads. Chose between R500 (500M) or R1000 (1000M) reflectorless measuring capability.

TS06 plus, R500 Total Station Packages

TS06 plus total station, with reflectorless R500 (power) EDM, full numeric keyboard with black&white display, RS-232 interface,Communication Sidecover (USB-Host, USB-Device ports & Bluetooth),laser plummet,Quick Guide and container with protective cover, lens hood and cleaning cloth.

765310 TS06plus: GTS26, 2nd full numeric keyboard, b&w display, face II

748888 GDF111-1 BASIC tribrach, without optical plummet, pale green.

733270 GEB221, Lithium-Ion battery, 7.4V/4.4Ah, rechargeable. To be used with FlexLine (plus)/TS11/TS12/TS15.

734752 GKL211, Charger BASIC, for Li-Ion batteries GEB221 and GEB211, car adapter cable and net adapter included.

778063 FlexOffice Standard Software, basic functionality for FlexLine instruments. (Node-Locked License)

6006176 TS06 Plus total station package, 7", Bluetooth, alpha-numeric display.....................................................................list $8,240.00

6006193 TS06 Plus total station package, 5", Bluetooth, alpha-numeric displays...................................................................list $9,140.00

6006192 TS06 Plus total station package, 3", Bluetooth, alpha-numeric displays..................................................................list $10,340.00

6006191 TS06 Plus total station package, 2", Bluetooth, alpha-numeric displays..................................................................list $11,740.00

6006175 TS06 Plus total station package, 1", Bluetooth, alpha-numeric displays..................................................................list $13,840.00
TS06 Plus, R1000 Total Station Packages; 1000M reflectorless measuring range, Bluetooth, dual alpha-numeric displays (except single for 7" model). Accessories same as shown above.

6006190 TS06 Plus total station package, 7", Bluetooth, R1000 reflectorless range, alpha-numeric display.........,,...,,.............list $9,490.00

6006196 TS06 Plus total station package, 5", Bluetooth, R1000 reflectorless range, alpha-numeric displays..........................list $10.840.00

6006195 TS06 Plus total station package, 3", Bluetooth, R1000 reflectorless range, alpha-numeric displays..........................list $12.040.00

6006194 TS06 Plus total station package, 2", Bluetooth, R1000 reflectorless range, alpha-numeric displays..........................list $13,440.00

6006136 TS06 Plus total station package, 1", Bluetooth, R1000 reflectorless range, alpha-numeric displays..........................list $15,540.00
TS09 FlexLine Plus total stations: All models include single large full-color touch screen display with graphics, Bluetooth, EGL5 electronic guide light, and a full suite of on-board software (see software chart below). No premade packages....chose your station, select from 2 choices of accessory packages, and select either FlexOffice Standard or FlexOffice Advanced software for your PC (click here for the software details). Other options, such as a second display, are available.

796970 TS09 Plus total station, 5", R500, Bluetooth..........................................................................................................list $10,900.00

785793 TS09 Plus total station, 3", R500, Bluetooth..........................................................................................................list $12,100.00

785794 TS09 Plus total station, 2", R500, Bluetooth..........................................................................................................list $13,500.00

785795 TS09 Plus total station, 1", R500, Bluetooth..........................................................................................................list $15,600.00

796971 TS09 Plus total staiton, 5", R1000, Bluetooth........................................................................................................list $12,600.00

785796 TS09 Plus total station, 3", R1000, Bluetooth........................................................................................................list $14,500.00

785797 TS09 Plus total station, 2", R1000, Bluetooth........................................................................................................list $15,900.00

785798 TS09 Plus total station, 1", R1000, Bluetooth........................................................................................................list $18,000.00

STANDARD ACCESSORY SET FOR TS02/TS06/TS09 (plus)

6002322 FlexLine plus Standard accessory Set, consisting of: (list price for complete set....$975.00)

748888 GDF111-1 BASIC tribrach, without optical plummet, pale green.

733269 GEB211, Lithium-Ion battery, 7.4V/2.2Ah, rechargeable. To be used with CS10/CS15 field controller, GS12 or GS15 receivers.

734752 GKL211, Charger BASIC, for Li-Ion batteries GEB221 and GEB211, car adapter cable and net adapter included.

734700 GEV189, Data transfer cable, Lemo to USB connector (incl. USB electronics), included on CD.Connects TPS1200+/DNA to PC for data transfer. PC driver and user manual 2.0m.

641615 Mini prism GMP111 BASIC, incl. bubble, with GLS115 and GHT111.

667718 GHM007 Instruments height meter.

722045 GHT196 Distance holder for height meter.

ADVANCED ACCESSORY SET FOR TS02/TS06/TS09 (plus)

6002323 FlexLine plus Advanced accessory Set, consisting of: (list price for complete set...$ 1,670.00)

667304 Tribrach GDF121 PRO, without optical plummet, pale green.

733270 GEB221, Lithium-Ion battery, 7.4V/4.4Ah, rechargeable. To be used with FlexLine (plus)/TS11/TS12/TS15.

733271 GKL221, Charger PRO. To be used with up to two charging adapters GDI221 or GDI222, Charger cable and net adapter included.

733323 GDI221, Adapter for GKL221 for charging 2 Li-Ion batteries GEB221, GEB211.

734700 GEV189, Data transfer cable, Lemo to USB connector (incl. USB electronics), included on CD.Connects TPS1200+/DNA to PC for data transfer. PC driver and user manual 2.0m.

641615 Mini prism GMP111 BASIC, incl. bubble, with GLS115 and GHT111.

667718 GHM007 Instruments height meter.

722045 GHT196 Distance holder for height meter.

FLEXOFFICE SOFTWARE FOR PC:

778063 FlexOffice standard software, basic functionality for FlexLine instruments, node-locked license................................list $50.00

778064 FlexOffice advanced software, includes TPS processing and COGO, node-locked lincense....................................list $300.00

784010 FlexOffice Standard DVD.......................................................................................................................................list $25.00

784022 FlexOffice Advanced DVD.....................................................................................................................................list $25.00

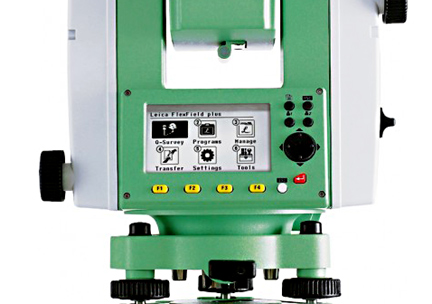

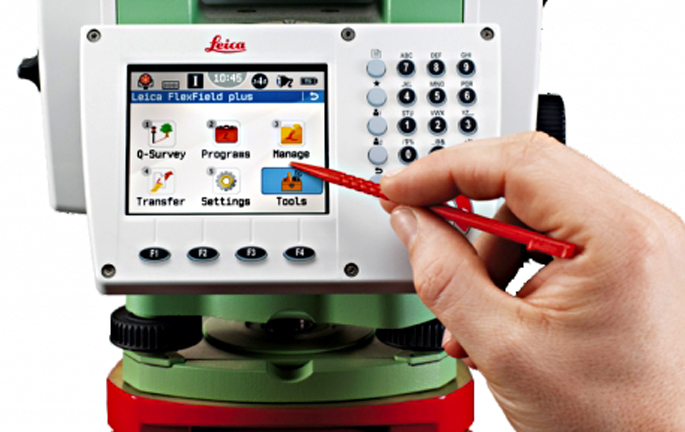

At left, TS06 display; above, TS02 display; below, TS09 display.

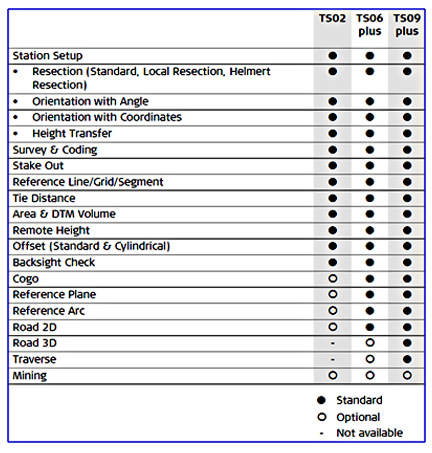

ABOVE: On-board software supplied as standard with the various FlexLine models!
Click HERE to view more information (including a feature comparison chart) on the Leica website!!
