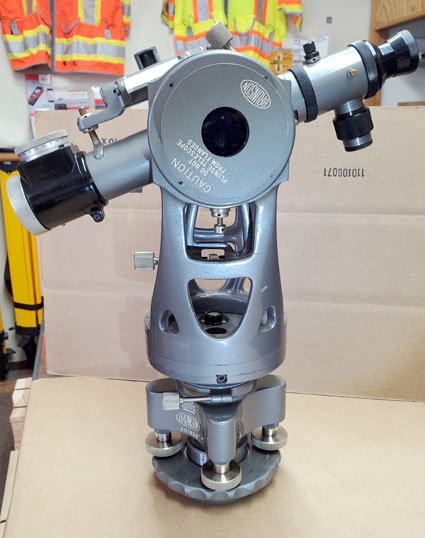

The 76-RH has precision telescope optics mounted on a solid-cast bronze horizontal axle which combine to produce a well-balanced instrument with feather-touch controls. The 76-RH is the undisputed "workhorse" of optical alignment, providing tremendous flexibility with substantial time and labor savings.The versatile Brunson 76-RH transit combines the traditional main telescope with a fixed-focus cross telescope mounted in the horizontal axis of the instrument. This second telescope is fixed at infinity focus to make collimation or autocollimation with another instrument or a mirror quick and easy. This capability means that the 76-RH can be quickly made perpendicular to an optical reference line. By simply shifting from the main eyepiece to the cross-axis eyepiece, an operator can establish or verify his/her position relative to the basic reference line in seconds. This effectively requires only one technician, where previously two were required.Patented ball bearing mounts permit accurate sweeping of both horizontal and vertical planes. The 76-RH employs a 194-TM coincidence level for precision leveling. The 194-TM has a 360-degree rotating turret to view the magnified bubble image from any position.Very good cosmetic and excellent operating condition. Serviced and calibrated for this sale. Standard grey "bomb proof" case included and is cosmetically challenged with scuffing but fully functional and not damaged.

• Bearings: Ball type with a runout of 0.000025" or less
• Cross-Axis Telescope Length: 11"
• Cross-Axis Telescope Magnification: 45X
• Cross-Axis Telescope Field of View: 1 degree
• Cross-Axis Telescope Image: Erect
• Cross-Axis Telescope Optics: Low reflective, protective coating
• Cross-Axis Telescope Effective Aperture: 1.25"
• Cross-Axis Telescope Reticle: Glass, filar/bi-filar patternCross-Axis Telescope Focusing Range, Focus is fixed at infinity
• Finish: Grey Polyurethane
• Main Telescope Effective Aperture: 1.34"
• Main Telescope Field of View: 1 degree
• Main Telescope Focusing Range: 2″ to infinity (and beyond!)
• Main Telescope Image: Erect
• Main Telescope Length: 14″ (with 190 micrometer)Main Telescope Magnification: 20X at 2″ from objective; 30X at infinity
• Main Telescope Optics Low reflective, protective coating
• Main Telescope Reticle: Glass, filar/bi-filar pattern (others available
• Equipped with heavy line projection reticle and autocollimation eyepiece (#192)
• Line of sight maintained within +/- .001 inch

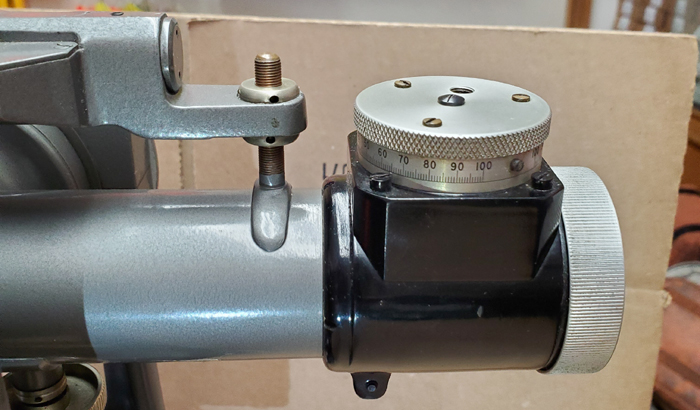

• Optional micrometer (#190) installed
• Special hollow telescope axis and mirror arrangement allow for perpendicular alignment

WRITE OR CALL (562-426-1306) FOR MORE INFO. WE ALSO HAVE N3 and 545 LEVELS and WYTEFACE SCALES!
