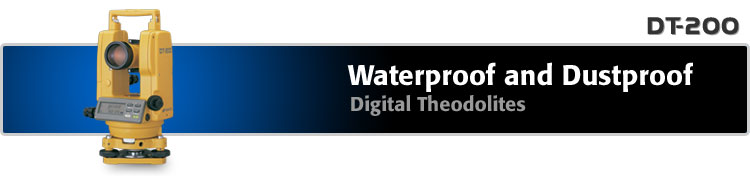

DT-200 Series Features:
- Long Battery Life
- Waterproof and Dustproof Digital Theodolites
- Available in three affordable models delivering 5", 7", or 9" angle accuracy, there is a DT-200 theodolite perfect for any job. Like the DT-100 series, the DT-200 sereies weathers any wet or dust conditions in the field, allowing for a more productive day during inclement weather. All models are also compact and lightweight for easy portability; and their simple operation provides precise measurement in a functional, hassle-free package.
- Economical, value priced measuring solution
- Rugged, durable, water resistant design
- Two accuracies to choose from 2" & 5"
- Expanded, Full numeric keypad
- On board programs & 24,000 point data storage
- Ideal as a construction stakeout total station
- Perfect when combined with FC field controller and software

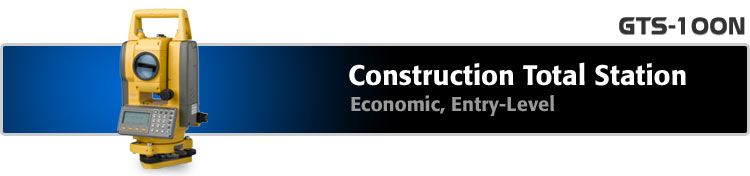

- The entry-level value choice is the GTS-100N. Built with legendary Topcon precision and durability, the GTS-100N provides the construction professional with a dedicated lay-out solution. Use the on-board software to layout points in the field, confident that with Topcon, you'll be right on target. Or use any of Topcon's field controllers running one of our range of software packages tailored to the tasks you want to perform.

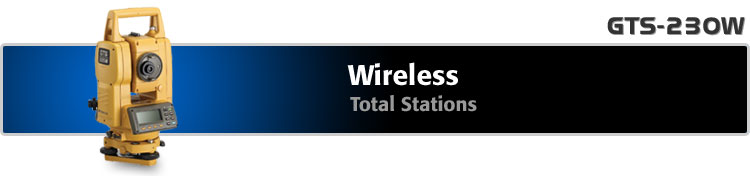

GTS-230W Series Features:
- World's first wireless total station (no cable between instrument and data collector)
- Large, easy-to-read screen
- Expanded keyboard for increased functionality
- Like Topcon's GTS-220 Series, the GTS-230W Series is loaded with standard features including a long life 10 hour NiMH battery, a "Point Guide Feature" to allow fast alignment in staking tasks, and a laser plummet to help make setup fast and easy. Even wireless operation is standard with the GTS-230W Series, so you don't have to worry about messy cables slowing you down!
- On board data collection, handy application programs, and increased distance range and EDM accuracy complete this package that’s been designed to speed up your work while insuring accuracy and ease of use.

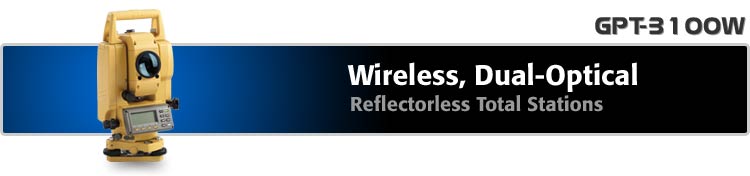

GPT-3100W Series Features:
- Dual-Optical Design; Reflectorless measuring requires a finely focused beam for pinpoint accuracy. Prisms need a wider pattern to prevent off-center measuring degradation. Topcon's dual-optical system gives you both for the maximum measuring accuracy all the time.
- Precise Pulse-Laser Reflectorless; Topcon's pulse-laser time-of-flight system eliminates measuring errors caused by the overlapping signals used in phase measuring systems. Accurately measuring corners or through objects such as a chainlink fence is always fast and reliable.
- Longest Reflectorless Range; Up to 250m, the longest reflectorless range in its class! Measures up to 3000m with a prism. The dualoptical design allows you the extended range using a class 1 laser--safe for all conditions, making it ideal for use in high-traffic and other heavily populated areas.
- Topcon's GPT-3100W uses a dual laser optics system, one narrow beam for non-prism functions, and a broader beam when using a prism. This stabilizes the beam over long distances providing accurate measurement, even in adverse atmospheric conditions such as heat shimmer.

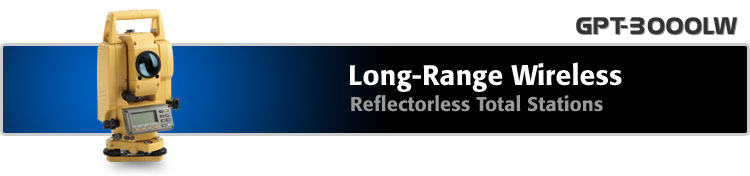

GPT-3000LW Series Features:
- 1200 Meter Reflectorless range – New long range reflectorless mode leaves competitors far behind. Measure 300m to ANY surface!
- Bluetooth® Communications – Tethered to your instrument with bothersome, trouble prone, expensive cables? Not any more! Just add a Topcon FC-100 or FC-2000 with wireless Bluetooth capability and forget your cable problems forever!
- Precise measurements – The ability of the 3000LW to measure long range is significant, but real advantage of this technology is what this increased measurement power means at shorter distances. The Topcon GPT-3000LW outperforms all other reflectorless total stations when measuring to difficult targets such as hanging wires or dark asphalt.
- Dual Laser optics – Our dual laser optics system uses one narrow beam for non-prism functions, and a broader beam when using a prism for more stable long-range measurement.
- Visible laser pointer – Our state-of-the-art visible diode technology puts a bright, flashing spot of light exactly at the point to be measured. And our Class 1 laser is so safe, you can use it in heavy traffic areas.
- Putting the competition “on-the-spot” - Most reflectorless instruments use a laser for distance measurement, with varying spot quality over distance. Topcon’s GPT-3000LW uses the industries most advanced, highly focused infrared beam for a very stable, sharp spot that is less resistant to “spreading” over distance.
- Topcon’s GPT-3000LW uses a dual laser optics system, one narrow beam for non-prism functions, and a broader beam when using a prism. This stabilizes the beam over long distances providing accurate measurement, even in adverse atmospheric conditions such as heat shimmer.
CTS-3000 Features:
- CTS - Contractors Total Station
- Layout and offset measurement made easy
- Reflectorless measurement to 250m
- Easy on-board software or use with hand-held collector
- Class 1, eye-safe laser
- The pinpoint refl ectorless measurement function will increase the productivity and flexibility of your measurements. Use a prism or not, it’s up to you. Utilize the CTS series to help you keep control on the job site. Replace lost or disturbed stakes, or use it to make spot measurements for elevations.

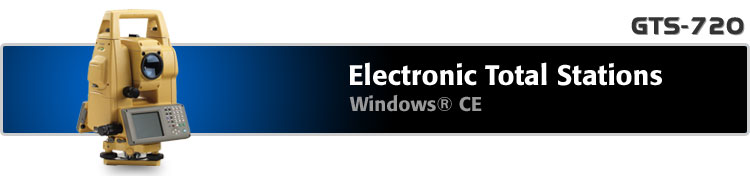

GTS-720 Series Features:
- Built-in Windows® CE.NET operating system
- Large, full color graphic display with touch screen
- Advanced Lithium-ion Battery
- Removable Compact Flash Data card
- Powerful On-board Software
- Windows® CE technology provides a bright graphic display, more functionality, better support for standard accessories and much more software available. In addition, it is easier to convert software written for other hardware. Our robust 32-bit multitasking environment allows application developers to get the best out of our modern microprocessor design.
- Windows® CE contains innovative functionality such as vibrant graphics and touch screen capabilities that make the user interface ideal for an integrated, on-board solution. The GTS-720 series once again demonstrates Topcon’s market leadership, and we will continue to ride the wave of technology while older text-based systems are left behind.
GTS-750 Features:
- Advanced 400MHz Intel Windows CE operating system with TopSURV on-board software
- Larger, backlit keypad with bright, color LCD touch-screen display
- CF card, USB Type A and USB mini slots delivers new storage and transfer capabilities
- Increased battery capacity (5000mAh) and operating time
- Slimmed down size…8% smaller than the GPT-7000 or GTS-720
- Increased performance with no increase in price
- Available in 1”, 3”, or 5” accuracy models, the GTS-750 can fit any job requirement without breaking your budget. The 1” and 3” versions have dual displays, while the 5” versions sport a single display. Range to a single prism is 3,000 meters for all models except the GTS-755, which is 2000 meters.

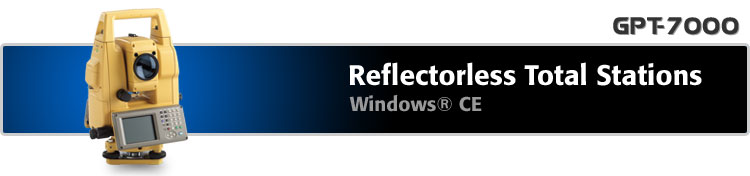

GPT-7000 Series Features:
- Advanced Lithium-ion Battery
- Removable Compact Flash Data card
- Powerful On-board Software
- Advanced Long Range Prismless Measurement Capability
- The GPT-7000 series gives you up to 250m reflectorless range, the longest in its class! Measure up to 3000m with a prism. The unique dual optical EDM design takes pulse laser reflectorless measurement to a higher level. Even at long distances, it maintains focused beam accuracy and allows you to measure only the target you select.
- Windows CE technology on the GPT-7000 total station provides a bright graphic display, touch screen display, more functionality, better support for standard accessories like Bluetooth® wireless technology, and more available software. It provides the ideal user interface for an integrated, on-board solution for the GPT-7000 total stations.
- Our robust 32-bit multitasking environment allows application developers to get the best out of our modern microprocessor design.
- GUI (Graphical User Interface) Boosts Your Productivity At Topcon efficiency and productivity are our priority. By adopting the latest Windows® CE technology, Topcon brings the advantages of the GUI (Graphical User Interface) to a Total Station. The large 3.5 inch TFT color LCD display is large and bright enough for you to view all your data at a glance. In bright sunlight, it adjusts automatically so you can see the display clearly. And the added advantage of a touch screen increases the convenience and ease of use of the GPT-7000 series. Whether you are an experienced user or just a beginner, the graphical interface and intuitive design will allow you to get up and running in no time.
