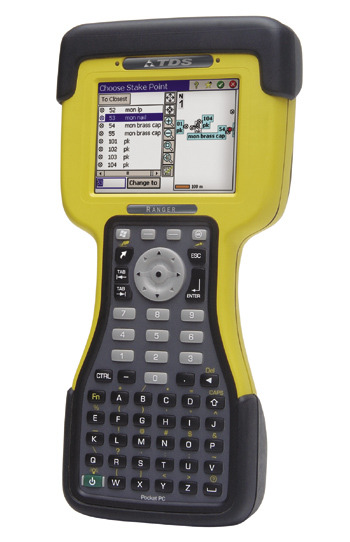

RANGER DATA COLLECTOR  FROM TRIMBLE
  • Newly re-designed, just released 7/05
  • Full color LCD touch screen remains visible, even in direct sunlight
  • Complete and separate alpha, numeric, and navigation keypads make the Ranger easy to operate, even when wearing gloves
  • Microsoft Windows Mobile 5 OS for Pocket PC
  • Intel PXA 270 XScale CPU can quickly handle even the most graphics-intensive applications
  • Up to 512 MB of Flash memory
  • 2 Compact Flash (CF) and 1 Secure Digital SD) slot for a multitude of expansion and memory options
  • Integrated Bluetooth or 802.11b options available
  • Handles extreme heat and cold, and meets military (MIL-STD-810F) and IP (IP67) standards for drops, vibrations, dust, corrosion, and water imersion
  • Battery life of up to 30 hours; complete recharge in less than 3 hours
  • Integrated speaker and microphone
The already awesome Ranger from TDS just got even better! Thanks to real-world feedback from 1000s of surveyors, the new Ranger delivers much requested features in two new models...the economical 300X and powerful 500X. Windows Mobile software for pocket PC runs a multitude of applications. New wireless capabilities let you connect without cables as the Ranger now gives you options for integrated Bluetooth and 802.11b wireless. Use the Ranger's two CompactFlash (CF) slots to add GPS, GPRS, digital cameras, bar-code scanners, and other CFdevices. For larger jobs, you can now use the new Secure Digital (SD) slot for more data storage. All packages include Microsoft Windows Mobile software, rechargeable battery system, standard CF-cap, screen protectors, USB cable, handstrap, nylon carry case, and stylus. ALL Ranger models now come standard with integrated Bluetooth! The Ranger 300X features a 312MHz processor 64MB SDRAM, and 256MB of flash memory. The top-of-the-line Ranger 500X comes standard with integrated Bluetooth (802.11g optional), 520MHz processor, 128 MB SDRAM, and 512MB of flash memory.

MSRP (7/07) FOR POPULAR NEW RANGER CONFIGURATIONS

ST2-SC3CMBB-SS Ranger 300X with Survey Standard...............................................................$2899.00

ST2-SC3CMBB-SP Ranger 300X with Survey Pro........................................................................$3299.00

ST2-SC3CMBB-SR Ranger 300X with Survey Pro Robotics......................................................$4099.00

ST2-SC3CMBB-SG Ranger 300X with Survey Pro GPS..............................................................$4099.00

ST2-SC3CMBB-SM Ranger 300X with Survey Pro Max (Robotics and GPS)........................$4599.00

ST2-SC5GMBB-SS Ranger 500X with Survey Standard .............................................................$3399.00

ST2-SC5GMBB-SP Ranger 500X with Survey Pro ......................................................................$3799.00

ST2-SC5GMBB-SR Ranger 500X with Survey Pro Robotics.....................................................$4599.00

ST2-SC5GMBB-SG Ranger 500X with Survey Pro GPS.............................................................$4599.00

ST2-SC5GABB-SM Ranger 500X with Survey Pro Max (GPS and Robotics).........................$5099.00

ST2-SY5GMDB-SS Ranger 500X with Survey Standard and 802.11g........................................$3549.00

ST2-SY5GMDB-SP Ranger 500X with Survey Pro and 802.11g.................................................$3949.00

ST2-SY5GMDB-SR Ranger 500X with Survey Pro Robotics and 802.11g...............................$4749.00

ST2-SY5GMDB-SG Ranger 500X with Survey Pro GPS and 802.11g.......................................$4749.00

ST2-SY5GMDB-SM Ranger 500X with Survey Pro Max and 802.11g.......................................$5249.00

THE ABOVE ARE LIST PRICES. PLEASE CALL (562-426-1306) OR WRITE FOR YOUR DISCOUNT PRICE ON THESE ITEMS, AS WELL AS OTHER CONFIGURATIONS AND ACCESSORIES  FOR THE RANGER!
